MC4-compatible connectors are one of the most common connector types used in solar panel cable systems. They are designed to connect photovoltaic cables between solar panels, extension leads, branch connectors, charge controllers, and other parts of a solar power setup.
If you are building or repairing a solar panel wiring system, choosing the correct connector matters. The connector must match the cable size, current rating, voltage rating, polarity, and installation environment.
What are MC4 connectors?
MC4 connectors are single-contact solar cable connectors used in photovoltaic systems. A typical pair includes one male connector and one female connector. The connectors lock together to create a secure connection and are commonly used with outdoor-rated solar cable.
When shopping, you will often see the wording MC4-compatible. This means the product is designed to work with MC4-style solar connections, but it should not be described as genuine MC4 unless it is supplied by the original brand or has verified documentation proving that claim.

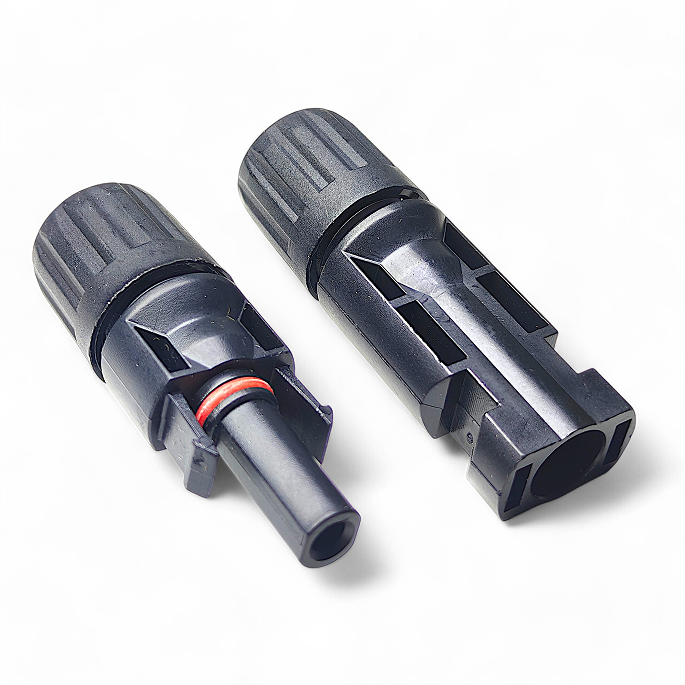

Male and female MC4-compatible connectors
Solar connectors are usually sold as male and female pairs. The male and female terms can be confusing because they may refer to the plastic housing or the internal metal contact. When replacing an existing connector, compare the full connector shape, polarity, markings, and cable entry size before ordering.
For solar panel cable extensions, you normally need a matching male and female pair. For branch connectors, check the configuration carefully, such as one male to two female or one female to two male.
What to check before buying
- Current rating: make sure the connector is rated for your system current.
- Voltage rating: check the connector is suitable for the PV system voltage.
- Cable size: common solar cable sizes include 4mm2 and 6mm2, but always check the connector specification.
- Weather protection: only rely on waterproof or IP rating claims when they are supported by supplier documentation.
- Crimp quality: poor crimps can cause resistance, heat, and unreliable performance.
- Compatibility: do not assume every MC4-style connector is safe to mix with every other connector.
Do MC4-compatible connectors need crimping?
Many solar cable connectors use crimp contacts. This means the metal contact must be crimped onto the cable conductor using a suitable crimping tool. The correct tool and die size are important because a weak or incorrect crimp can create a poor electrical connection.
Some products may be supplied as pre-made leads or with different assembly methods. Always follow the product instructions and supplier datasheet.
Common uses for MC4-compatible connectors
- Solar panel cable extensions
- PV panel wiring repairs
- Solar charge controller input leads
- Campervan and motorhome solar systems
- Off-grid battery charging setups
- Solar branch connector installations
Safety notes for solar panel connectors
Solar panels can produce voltage whenever they are exposed to light. Do not connect or disconnect solar connectors under load unless the manufacturer documentation specifically allows it. If you are unsure about polarity, current rating, voltage rating, cable sizing, or system protection, ask a qualified electrician or competent solar installer.
