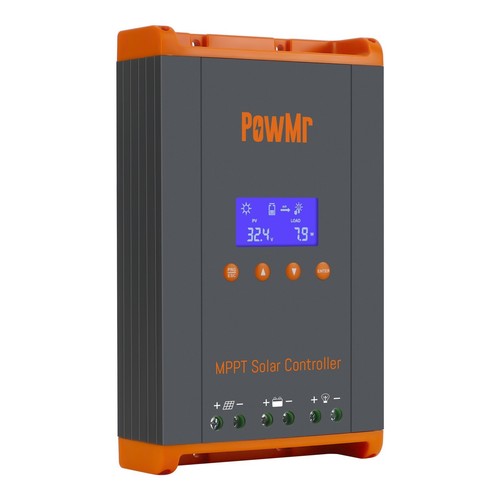

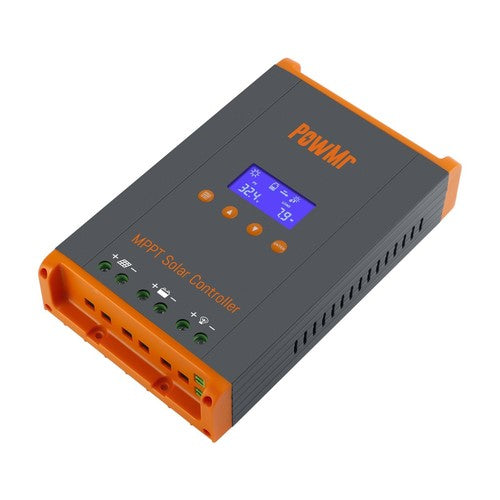

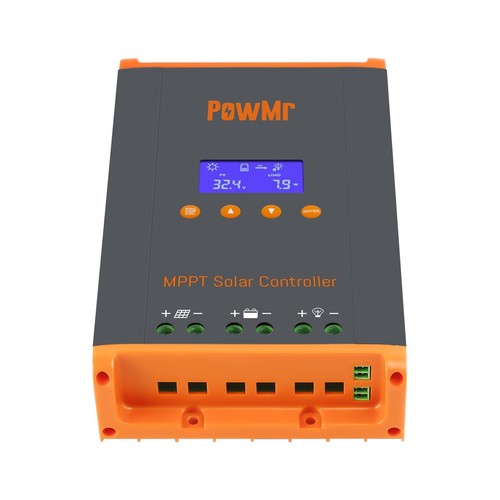

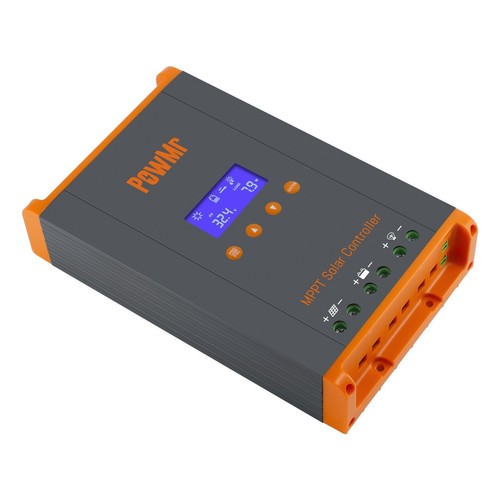

MPPT Solar Charge Controller 12/24/36/48V 60A Panel Battery Inverter 2800W Sine Wave

Models

HHJ60-PRO

Solar Input Parameters

Max. Solar Array Open-Circuit Voltage

160V

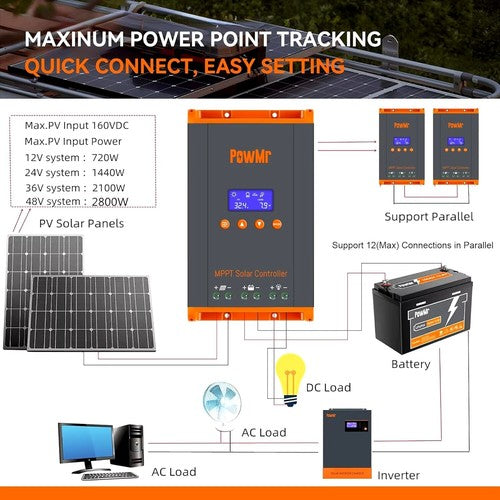

Maximum Input Power

For 12V System（720W）

For 24V System（1440W）

For 36V System（2100W）

For 48V System（2800W）

Input Voltage Range

For 12V System（20V~80V）

For 24V System（37V~105V）

For 36V System（50V~160V）

For 48V System（72V~160V）

Battery Charging Parameters

Charging Technology

MPPT

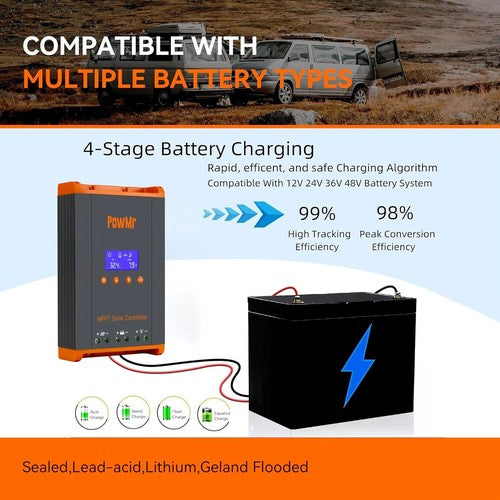

Charging Algorithm

3 stages

Battery Voltage Auto-Detection

For 12V System（DC9V~DC15V）

For 24V System（DC18V~DC29V）

For 36V System（DC30V~DC39V）

For 48V System（DC40V~DC60V）

Overcharge Protection Voltage

60V

Charging Limit Current

61A

Maximum Efficiency

≥98. 1%

Solar Utilization Rate

≥99%

Load Terminal Output

Rated Output Current

6A

Maximum DC Output Current

8A

Protection

Temperature Protection

75℃/167 ℉

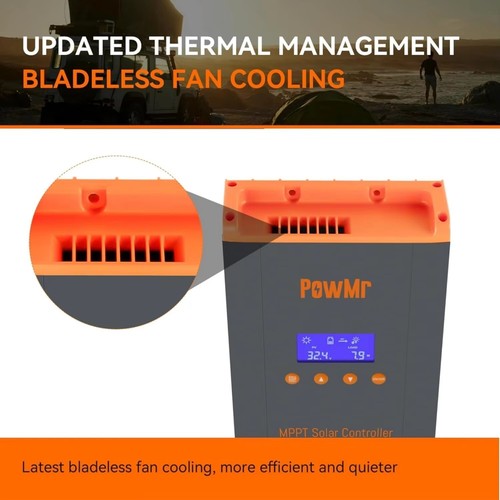

Fan Start Temperature

>45℃/104℉

Fan Shutdown Temperature

<40℃/95℉

General Specification

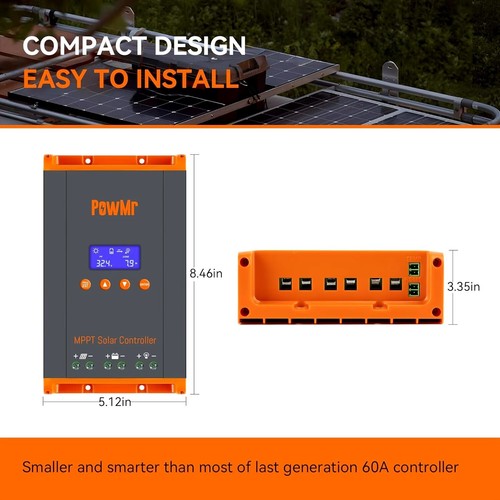

Dimensions

215x130x85mm /8.46x5.12x3.35in

Net Weight

990g / 2.18lb

Electromagnetic Compatibility

EN61000, EN55022, EN55024

Protection Level

IP21

Operating Temperature

-20℃ ~ +55℃ / -4℉ ~ 131℉

Storage Temperature

-40℃ ~ +75℃ / -40℉ ~ 167℉
